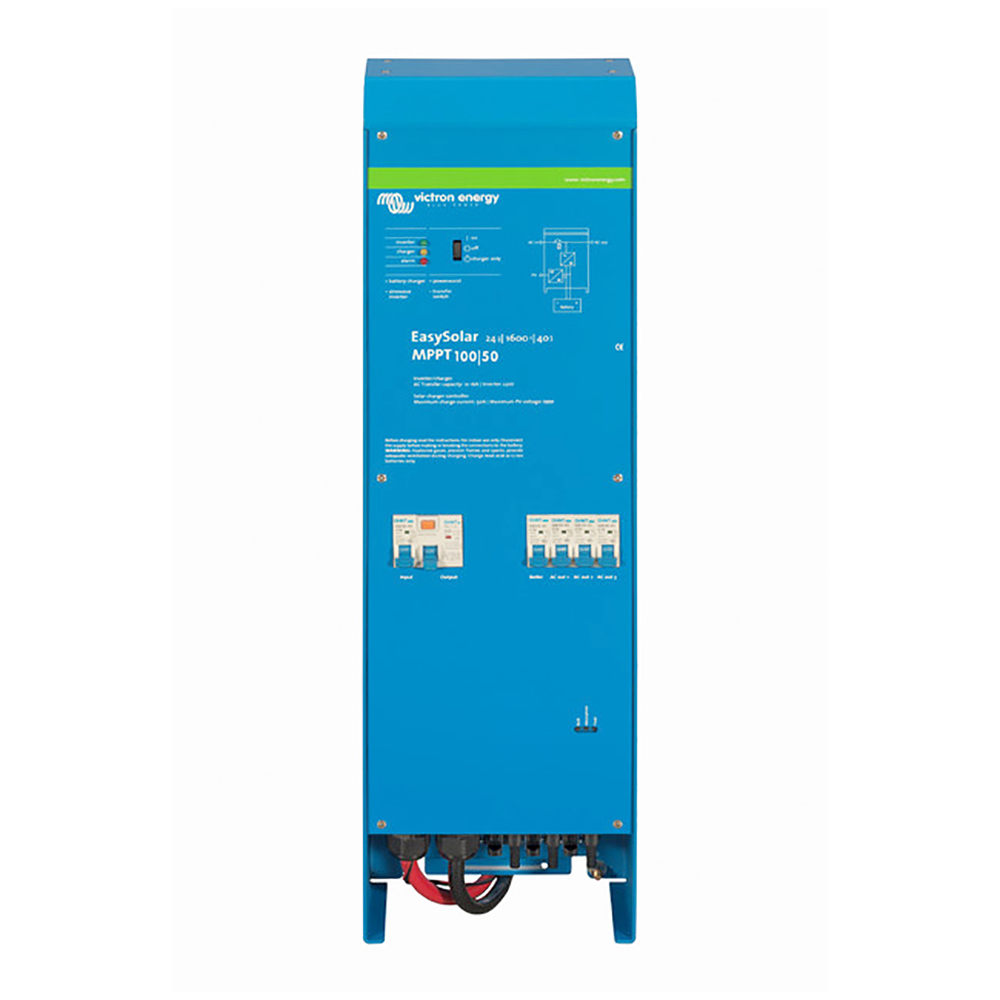

Description All-in-one solar power solution: The Easy Solar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. The solar charge controller: Blue Solar MPPT 100/50. Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors. The inverter/charger: MultiPlus Compact 12/1600/70. The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (Blue Solar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset. AC distribution: The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available. Power Assist: Unique Power Assist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed. • 3000 Watt Peak Power • 1300 Watt / 1600 VA Continuous • Dimensions: 745mm (H) x 214mm (W) x 110mm (D) • Weight 15KG
