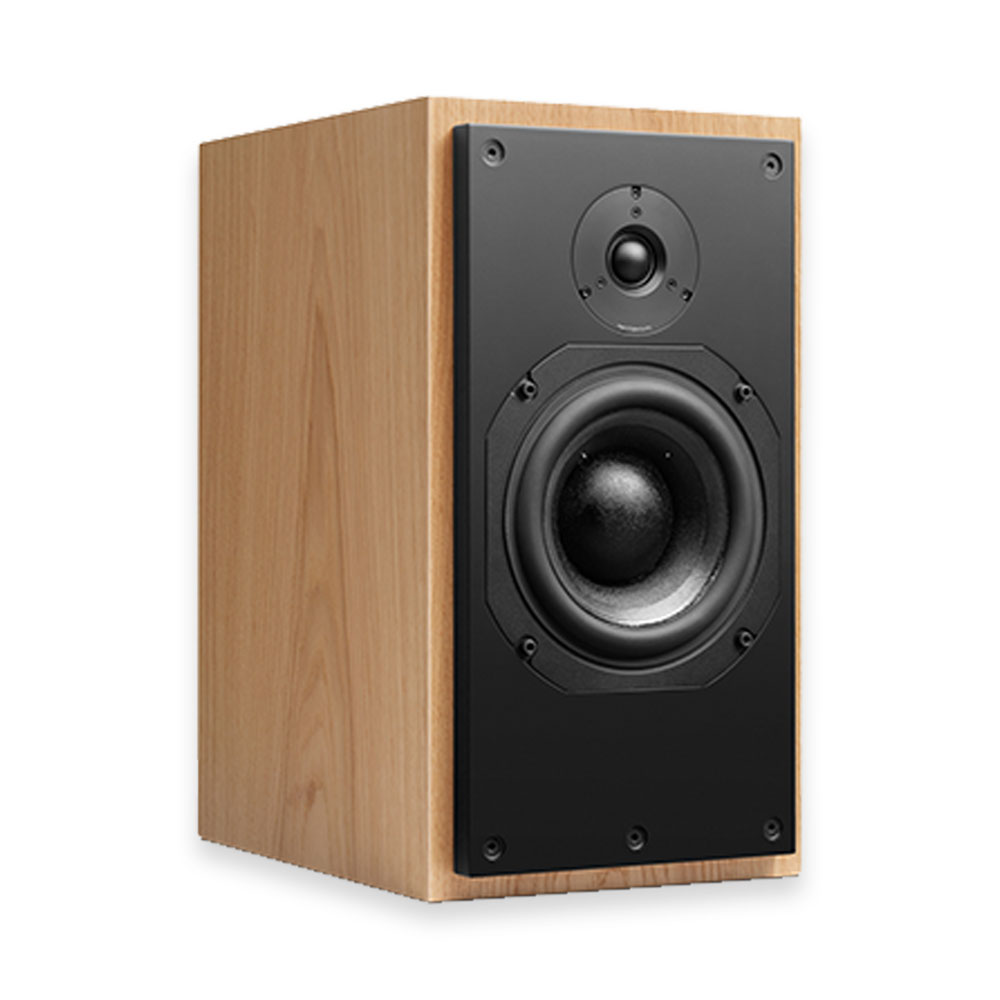

ATC SCM20ASL Active Stand-Mount Loudspeakers (Standard Edition)

Description SCM20ASL Standard Edition The SCM20ASL is a 2-way active stand-mount loudspeaker and is the ideal choice in modestly sized rooms where outstanding musical reproduction is the goal. Its sealed cabinet design ensures exceptionally well controlled bass, even in smaller spaces and/or when located close to walls. Driver Units The bass driver, HF driver and amplifier are all designed and manufactured in-house by ATC and to the highest standards to form a system that cannot be matched by equivalent passive systems. The bass driver is a 150 mm part with large 75 mm voice coil and short-coil (long-gap) motor assembly featuring ATC’s proprietary ‘SL’ motor technology which, reduces distortion in the upper bass and mid-range. High frequency reproduction is handled by an ATC 25 mm soft-dome part featuring a dual-suspension and very high energy 2.1 tesla motor. Crossover Integrating the two drive units is a precision active crossover which feeds a pair of class A/B MOSFET power amplifiers. The crossover operates at line-level maximising efficiency, plus the inclusion of an all- pass-filter results in improved timing and tonal balance through the crossover region. Active Amplification One power amplifier is dedicated to each drive unit and their performance and power output is carefully tailored to the driver demands and the musical elements they reproduce. The SCM20ASL Standard Edition cabinet features a combination of bracing for stiffness and damping to suppress resonance and is available in a wide range of real wood veneers, satin black or white painted finishes and high gloss lacquers. Features 150 mm / 6-inch ATC Super Linear mid / bass driver loaded in a compact sealed cabinet. 25 mm / 1-inch ATC S-Spec soft-dome dual-suspension HF driver. On-board ATC active 250 W Amp Pack module. Balanced input & 2nd order Linkwitz-Riley active crossovers. User adjustable input sensitivity & bass shelf controls. 2 x class A/B MOSFET amplifiers, 200 W bass / mid & 50 W high frequency. Hand-built in England. 6 year warranty. Specifications Low Frequency Cut-off: 55 Hz (-6 dB, anechoic) High Frequency Cut-off: 25 kHz (-6 dB) Amplitude Linearity: 80 Hz – 20 kHz ( /- 2 dB) Matched Response: /-0.5 dB Crossover Point: 2.2 kHz Max SPL: 108 dB continuous, 114 dB peak (per pair, IEC Weighted Pink Noise, 1 m, anechoic) Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot Input Impedance: 20 kΩ (differential) Input Sensitivity: 2.2 dBu / 1 Vrms for full power Input Sensitivity Control: -6 dB switchable, -6 dB variable. Total adjustment 2.2 dBu / 1 V RMS to 14.2 dBu / 4 V RMS Bass Shelf: -2 dB to 3 dB, switchable in 1 dB steps Crossover Filters: 2nd Order Linkwitz-Riley Amplifier type: Grounded Source MOSFET, class A/B, convection cooled Output Power: Bass 200 W (8 Ω), High 50 W (8 Ω) Mains Input: 220-230 V or 115 V, factory set Net Weight: 24.3 kgs / 53.5 lbs Full ATC Range Available Unilet Sound & Vision are official retail partners for ATC Loudspeakers, providing sales, advice and assistance on their entire range of high-quality products. Please do get in touch if you would like a demonstration or wish to purchase. More Information Review of the ATC SCM20ASL, by The Ear Review of the ATC SCM20ASL, by Sound Advice SCM20ASL Standard Edition, by ATC Loudspeakers
