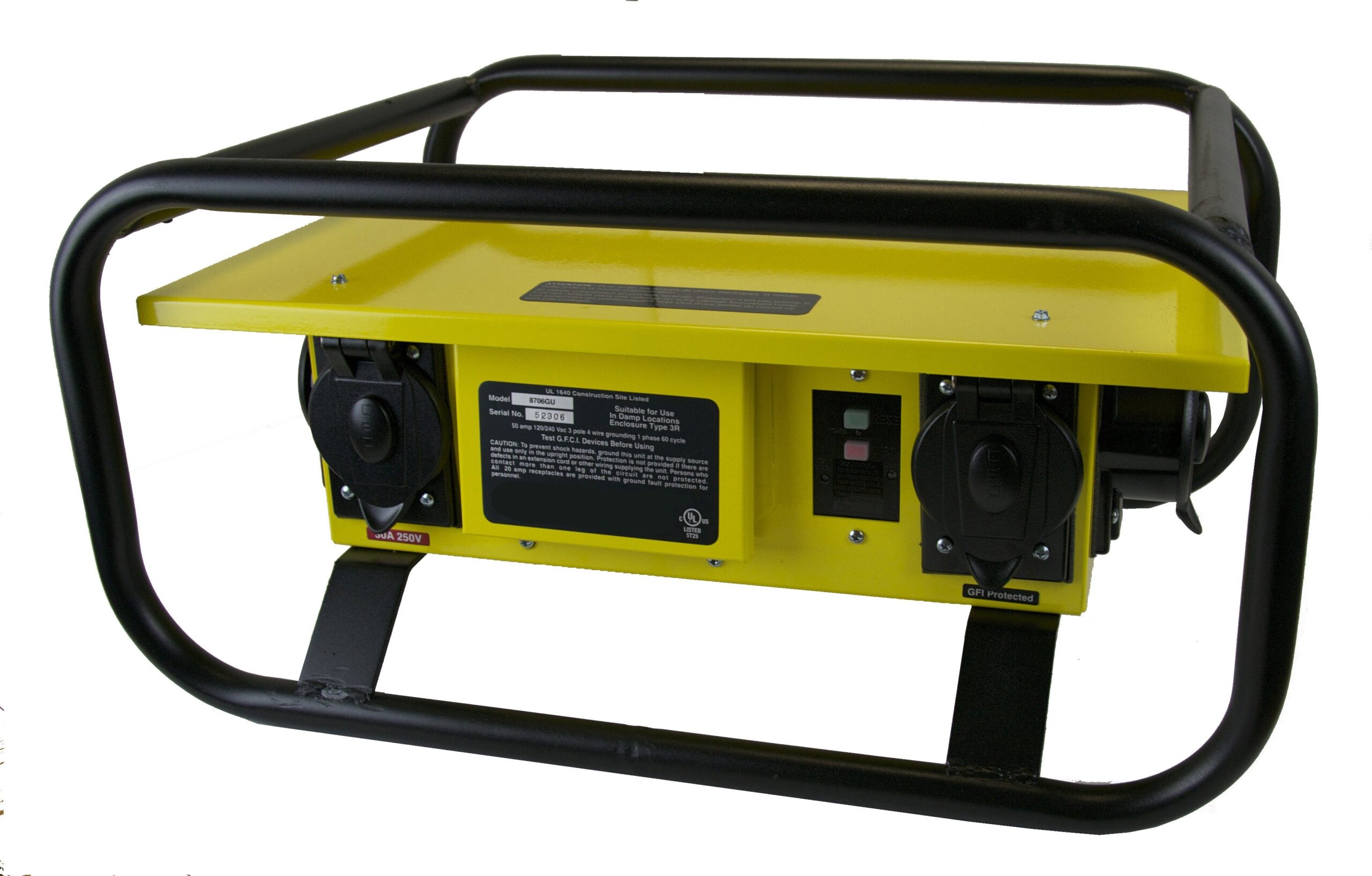

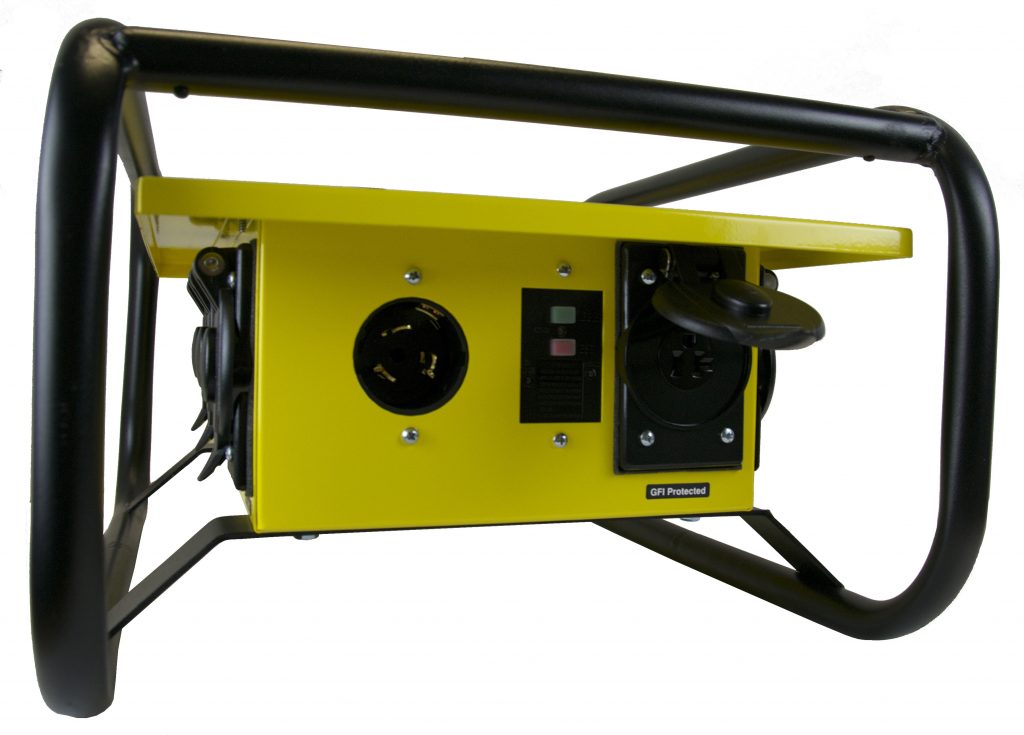

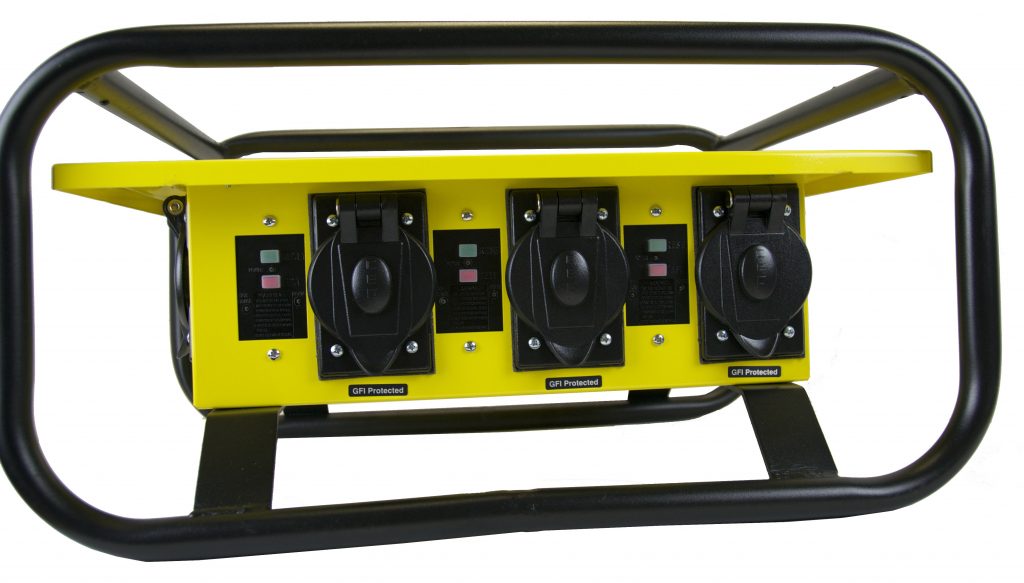

THE PORTABLE POWER CENTER is the safest, easiest and most economical method of providing electricity to portable power tools, lighting systems and other electrical uses. Wherever temporary power is needed, the system is easily set up and may be removed as required. The circuit breakers provide the same protection as a permanent system. When the job is completed, the system is easily disassembled for return to the warehouse where they stack for valuable space saving economy. GROUND FAULT CIRCUIT BREAKERS are provided in our GFI models for each 20 amp receptacle (the 30 amp and 50 amp receptacles do not require ground fault protection) All of the Portable Power Centers have a 50 amp 125/250 volt inlet and outlet. These two devices are the "CS" series, sometimes called the ALPHA or California Special system and they are rated 50 amp 125/250 volt A/C Grounded Locking Type with Pin-Rejector 3 pole/4wire. All of the Portable Power Centers have one 30 amp 250 volt Twist-to-Lock receptacle protected by a two pole thermal overload breaker. This model has six U Ground (5-20R) receptacles and a standard breaker. NOTE: Approved by the City of Los Angeles.
