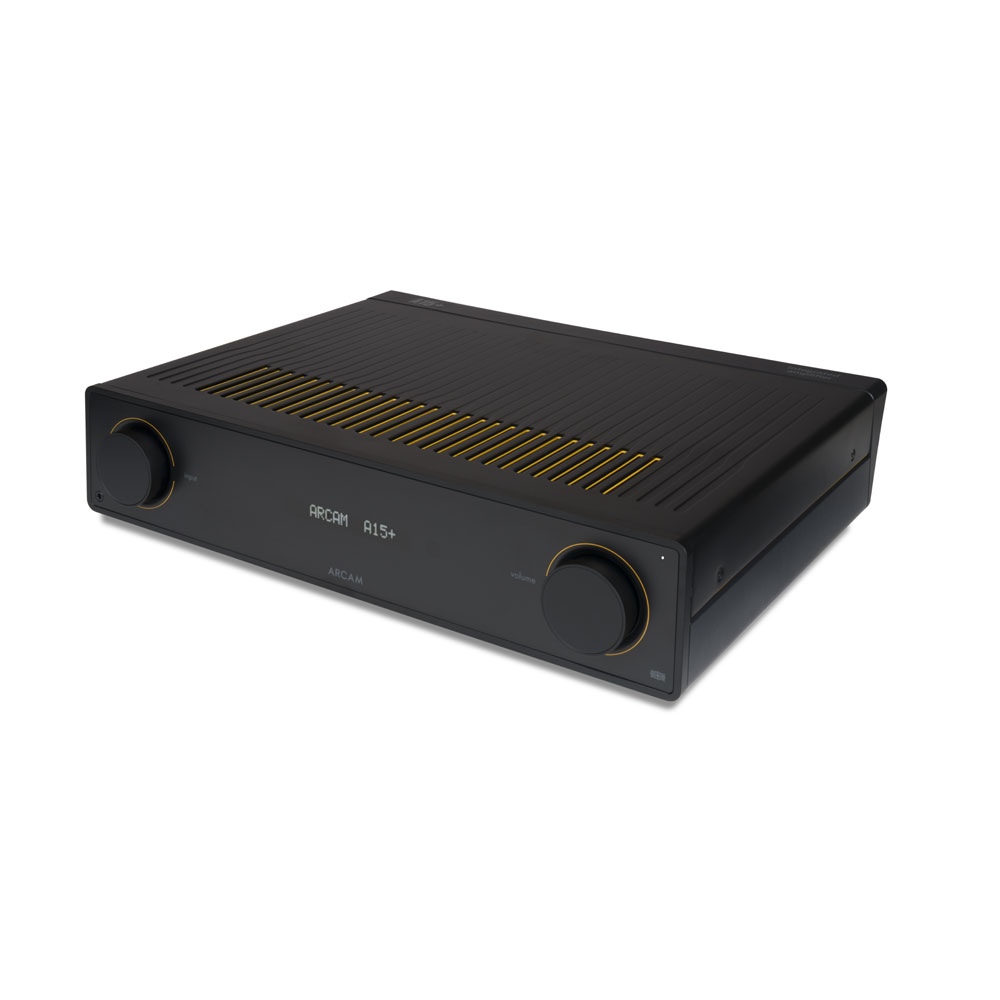

Description Arcam A15 Integrated Amplifier Pre-Order Now, Stock Expected October 2025 With a wide array of analogue inputs, including a meticulously tuned phono stage, and digital inputs including HDMI eARC, the ARCAM A15 provides an impact for everything from vinyl to TV. The A15 features an enhanced power supply design and cutting edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required. Wireless audio with Bluetooth 5.4 Featuring Snapdragon Sound for wireless lossless audio Featuring Auracast for connecting wireless headphones or speakers to play music in multiple spaces. HDMI eARC input Hi-res audio ESS ES9018 DAC Meticulously tuned phono stage Class AB amplification 2x 80 Watts (8Ω) Power Output Compact remote control Solid aluminium dials Aluminium front, top, sides and rear panels Specification Continuous power output (0.5% THD) 2 channels driven 8Ω, 20Hz ‑ 20kHz 80W 4Ω, 1kHz, 120W Harmonic distortion, 80% power, 8Ω at 1kHz 0.002% Analogue Inputs Number of inputs 3 (RCA pairs) Signal/noise ratio (A‑wtd, ref. 50W, 1V input) 106dB Frequency response 20Hz—20kHz ± 0.2dB Phono (MM) Input Input impedance 47kΩ 100pF Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB Digital Inputs Supported Sample Rates (kHz) 192, 176.4, 96, 88.2, 48, 44.1 Bit depths (bit) 24, 16 Frequency response (filter 1) 20Hz—20kHz ± 0.2dB Signal/noise ratio (A‑wtd, ref. 50W, 0dBFS) 109dB Headphone Output Maximum output level (RMS) into 32Ω/300Ω 2.5V/5V Load range 16Ω ‑ 2kΩ Wireless Specifications Bluetooth Version 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast Bluetooth Transmitter Frequency and Power 2,400 MHz to 2,483.5 MHz: <20dBm General Mains voltage 100V or 110–120V or 220–240V, 50–60Hz Power consumption (maximum) 500W Power consumption (standby) <0.5W Dimensions W x D (including speaker terminals) x H (including feet) 431 x 344 x 98mm Weight (net) 10 kg Weight (packed) 13kg Supplied accessories Mains lead(s) Remote control with 2 x AAA batteries Quick Start Guide Important Safety Instructions
